Laser Cutting Machine Limitations Understanding

I. Introduction

Laser cutting technology has revolutionized the manufacturing industry by providing a highly precise and efficient method for cutting various materials. Utilizing a focused laser beam, this technology can cut, engrave, and shape materials with remarkable accuracy, making it a staple in industries ranging from automotive to electronics.

However, like any manufacturing process, laser cutting has its limitations. Understanding these constraints is crucial for manufacturers to optimize their operations and select the appropriate technology for their specific needs.

This article mainly discusses the key limitations of laser cutting machines, covering material constraints, technical and operational challenges, safety and environmental concerns, specific application issues, and alternative cutting technologies.

II. Material Limitations

Types of Materials

Laser cutting demonstrates remarkable versatility across a wide spectrum of materials, including ferrous metals like mild steel and stainless steel, non-ferrous metals such as aluminum alloys, and various polymers like acrylic (PMMA) and polycarbonate.

However, certain materials present significant challenges. Highly reflective metals, particularly copper and some aluminum grades (e.g., 6061-T6 with polished surfaces), can pose safety risks and reduce cutting efficiency by reflecting the laser beam.

This phenomenon necessitates specialized high-power fiber lasers or surface treatments to enhance absorption. Transparent materials, such as certain glasses and clear plastics, also prove problematic due to their low absorption coefficients, often requiring specific wavelengths or pulsed laser systems for effective processing.

Material Thickness

The thickness capacity of laser cutting systems represents a critical limitation, with practical constraints typically ranging from 0.1mm to 25mm for metals, depending on the laser type and power.

CO2 lasers excel in cutting thicker non-metallic materials (up to 50mm in some acrylics), while fiber lasers dominate in metal cutting, especially for thicknesses up to 20mm in mild steel.

Beyond these thresholds, cut quality deteriorates rapidly, manifesting as increased kerf width, taper, and dross formation. For materials exceeding optimal laser cutting ranges, alternative technologies like waterjet cutting or plasma cutting often prove more effective, especially for thicknesses beyond 25mm in metals.

Material Waste

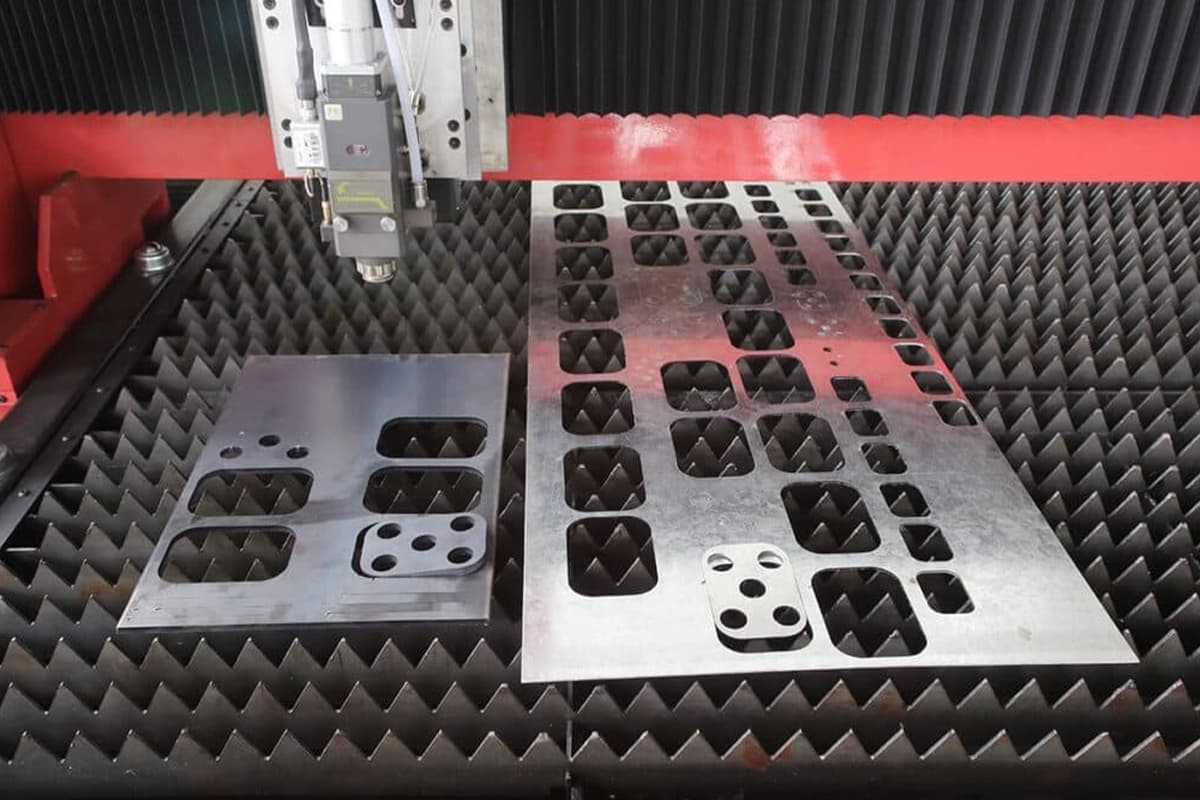

Kerf width, a crucial factor in material utilization efficiency, varies significantly in laser cutting. Typical kerf widths range from 0.1mm to 1mm, contingent upon material properties, laser type, and cutting parameters.

High-power fiber lasers can achieve narrower kerfs (0.1-0.3mm) in thin metals, while CO2 lasers may produce wider kerfs (0.2-0.5mm) in thicker materials. This variance directly impacts material yield, particularly critical when processing high-value materials like titanium alloys or exotic steels.

Advanced nesting software and optimized cutting strategies, such as common-line cutting, can significantly reduce waste, often achieving material utilization rates of 80-90% in complex parts. Additionally, the heat-affected zone (HAZ) adjacent to the cut edge must be considered, as it can affect material properties and subsequent processing steps.

III. Technical and Operational Constraints

Energy Consumption

Laser cutting machines demand significant energy, particularly when processing thicker or high-strength materials. Power requirements vary based on machine specifications and laser type (e.g., CO2, fiber, or disk lasers).

For instance, a 4kW fiber laser cutter typically consumes 15-20 kWh during operation. This substantial energy demand not only escalates operational costs but also affects the overall process efficiency and environmental impact.

To mitigate these issues, manufacturers are increasingly adopting energy-efficient laser sources and implementing power management strategies, such as automatic standby modes and optimized cutting parameters. Some advanced systems incorporate energy recovery systems, converting excess heat into usable electricity, potentially reducing overall consumption by up to 30%.

Initial Setup and Maintenance Costs

The capital investment for laser cutting technology is considerable, with high-performance systems ranging from $300,000 to over $1 million. This expenditure encompasses not just the machine but also auxiliary equipment like chillers, fume extractors, and material handling systems.

Installation and commissioning can add 10-15% to the initial cost. Ongoing maintenance is crucial for optimal performance and longevity. Annual maintenance costs typically range from 3-5% of the machine's purchase price, covering consumables (e.g., nozzles, lenses), laser gas for CO2 systems, and preventive maintenance.

To maximize return on investment, manufacturers are increasingly adopting predictive maintenance strategies, utilizing IoT sensors and machine learning algorithms to forecast component failures and optimize maintenance schedules, potentially reducing downtime by up to 50%.

Precision and Calibration

While laser cutting offers exceptional precision, maintaining this accuracy presents ongoing challenges. Modern laser cutters can achieve tolerances as tight as ±0.1 mm, but this level of precision requires meticulous calibration and environmental control. Factors such as thermal expansion, beam delivery system alignment, and focal point stability all impact cut quality.

Advanced systems employ real-time adaptive optics and closed-loop feedback mechanisms to maintain precision during operation. For instance, capacitive height sensing technology can dynamically adjust the focal point, compensating for material irregularities.

Environmental control is equally critical; temperature variations of just 1°C can cause measurable deviations in large parts. To address this, some facilities implement climate-controlled enclosures or thermal compensation algorithms.

Regular calibration using laser interferometry techniques ensures long-term accuracy, with many modern systems featuring automated calibration routines to minimize downtime and operator dependency.

IV. Safety and Environmental Concerns

Safety Issues

Operating laser cutting machines involves critical safety risks that demand meticulous management. High-power lasers can inflict severe injuries, including third-degree burns and permanent eye damage, if stringent safety protocols are not rigorously enforced. The laser's intense focal point, often exceeding 2000°C, can rapidly ignite flammable materials, presenting significant fire hazards. To mitigate these risks, comprehensive safety measures are imperative:

1. Protective equipment: Operators must wear appropriate laser safety eyewear with an optical density (OD) matched to the specific laser wavelength and power.

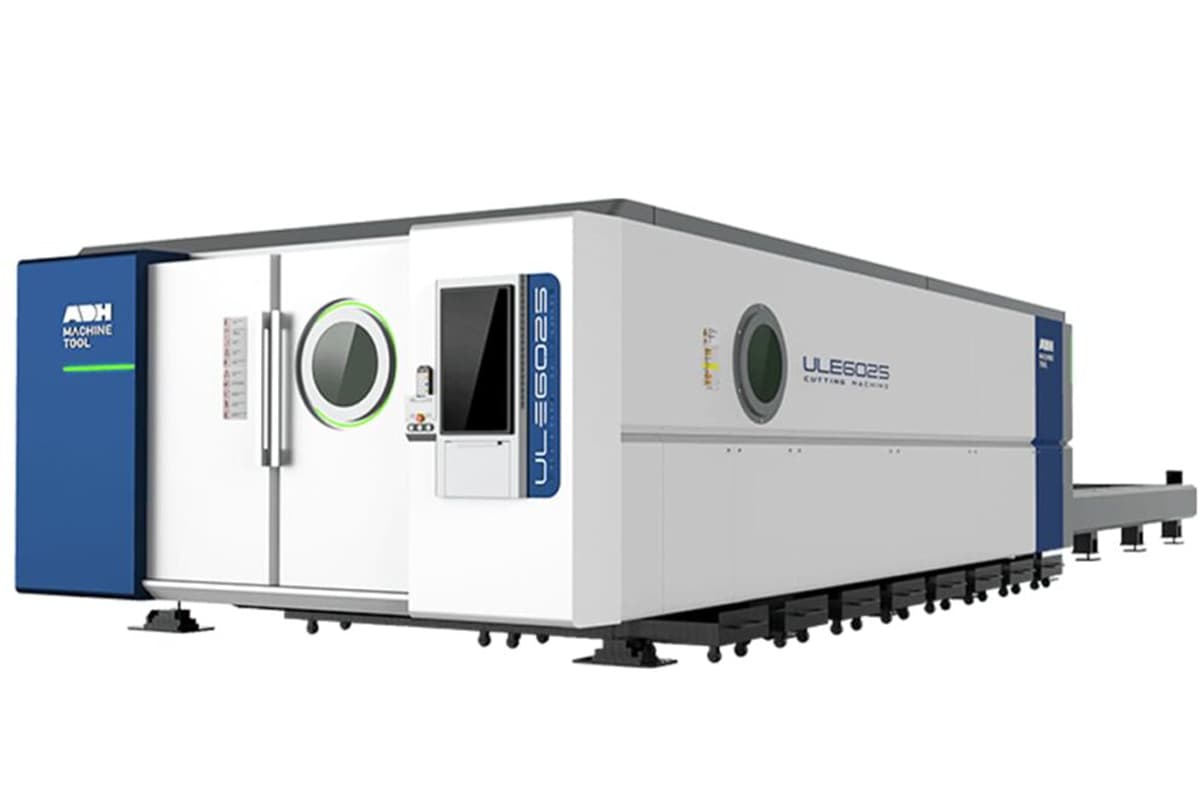

2. Machine enclosures: Fully enclosed Class 1 laser systems with interlocked safety doors and viewing windows with proper filtering.
3. Emergency systems: Readily accessible emergency stop buttons and automated fire suppression systems.
4. Training: Rigorous operator training on laser physics, potential hazards, and proper machine operation, including ANSI Z136 standards compliance.

Health Hazards

The laser cutting process generates potentially hazardous fumes and particulates, especially when processing engineered materials. These emissions can pose significant health risks if not properly managed:

1. Metal fumes: Cutting stainless steel or galvanized materials can release hexavalent chromium or zinc oxide fumes, known carcinogens and respiratory irritants.
2. Polymer decomposition: Cutting plastics like PVC can produce hydrogen chloride gas and other toxic substances.
3. Nanoparticles: High-power lasers can generate ultrafine particles that can penetrate deep into the lungs.

To safeguard worker health:

• Implement high-efficiency fume extraction systems with HEPA filtration (minimum 99.97% efficiency for particles ≥0.3 μm).
• Utilize source capture methods, positioning extraction nozzles as close to the cutting zone as possible.
• Provide workers with appropriate personal protective equipment (PPE), including respirators rated for specific contaminants.
• Conduct regular air quality monitoring, including particle counting and gas analysis, to ensure compliance with OSHA PELs (Permissible Exposure Limits).
• Implement medical surveillance programs for workers regularly exposed to laser cutting fumes.

Environmental Considerations

The environmental impact of laser cutting extends beyond immediate health concerns:

Energy consumption: High-power CO2 lasers can consume 10-30 kW during operation. Fiber lasers offer improved efficiency but still contribute significantly to energy usage.

Waste management:

• Metal scrap: While recyclable, requires proper sorting and handling.
• Spent filters: May contain hazardous materials and require specialized disposal.
• Assist gases: Nitrogen and oxygen cylinders must be properly managed and recycled.
• Water usage: Water-cooled lasers can consume significant amounts of water, impacting local resources.

To minimize environmental impact:

• Implement energy-efficient laser systems and optimize cutting parameters to reduce power consumption.
• Utilize nesting software to maximize material utilization and minimize scrap.
• Establish closed-loop recycling programs for metal waste and assist gas cylinders.
• Consider transitioning to fiber lasers, which typically offer 2-3 times higher energy efficiency than CO2 lasers.
• Explore dry cooling systems or closed-loop water recycling for cooling systems.
• Conduct regular environmental audits and strive for ISO 14001 certification for environmental management systems.

V. Specific Application Challenges

2D Cutting Limitations

Laser cutting technology primarily excels in 2D applications, offering unparalleled precision for flat sheet material processing. However, its limitations become apparent when confronted with complex 3D geometries or intricate spatial structures.

While 2.5D cutting (multi-level flat cutting) is achievable, true 3D capabilities remain elusive for conventional laser systems. This constraint can be particularly challenging in industries like aerospace or automotive manufacturing, where complex three-dimensional components are essential.

To overcome this limitation, manufacturers often integrate laser cutting into hybrid manufacturing cells, combining it with complementary technologies such as 5-axis CNC machining or additive manufacturing. This synergistic approach allows for the creation of complex 3D parts by leveraging the strengths of each process.

Thermal Effects

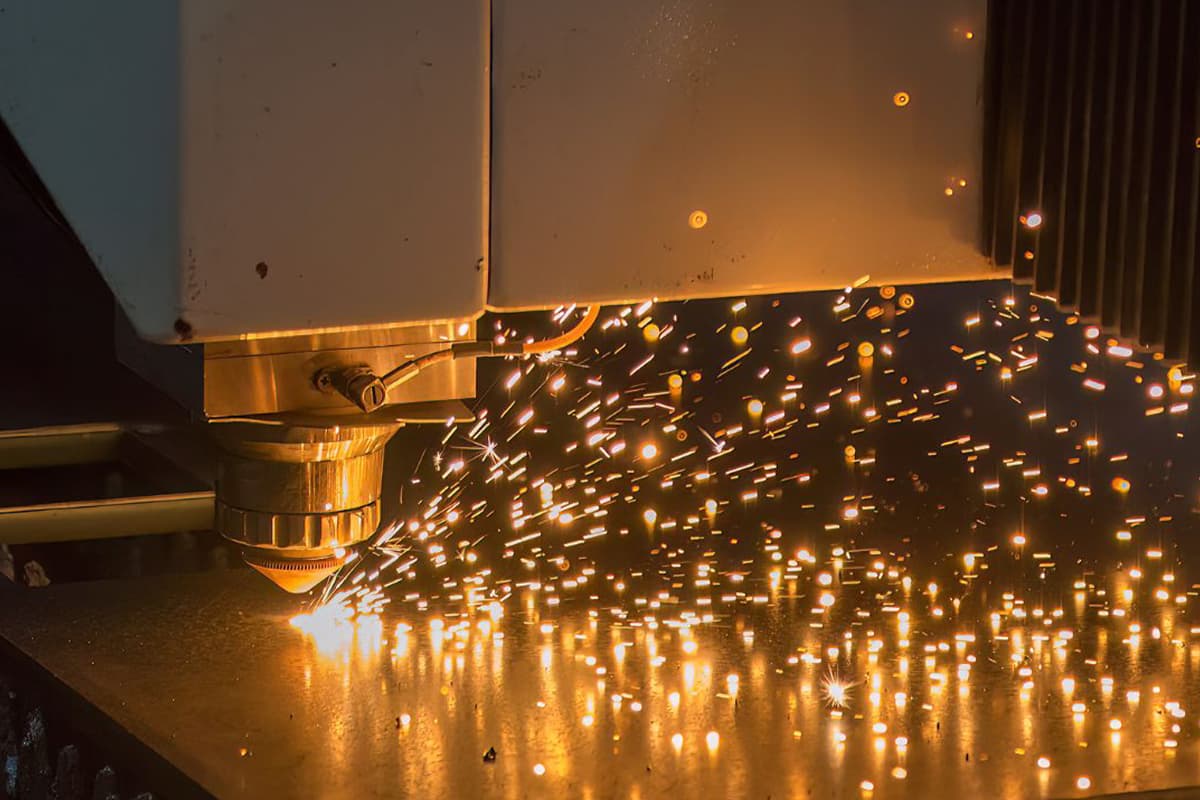

The high-energy density of laser beams introduces significant thermal considerations during cutting operations. Material-specific heat-affected zones (HAZ) can lead to microstructural changes, residual stresses, and potential defects such as warping, edge melting, or discoloration.

The severity of these thermal effects is influenced by factors including laser power density, pulse characteristics, cutting speed, and the material's thermophysical properties. Mitigating these effects requires a nuanced approach to process parameter optimization.

Advanced techniques like adaptive optics for beam shaping, synchronized pulsing strategies, and localized cryogenic cooling can significantly reduce thermal damage. Additionally, post-processing treatments such as stress relief annealing may be necessary for critical components to ensure dimensional stability and mechanical integrity.

Cooling Requirements

Effective thermal management is crucial for maintaining both cut quality and equipment longevity in laser cutting systems. Cooling requirements extend beyond the workpiece to encompass the laser source, optics, and auxiliary components.

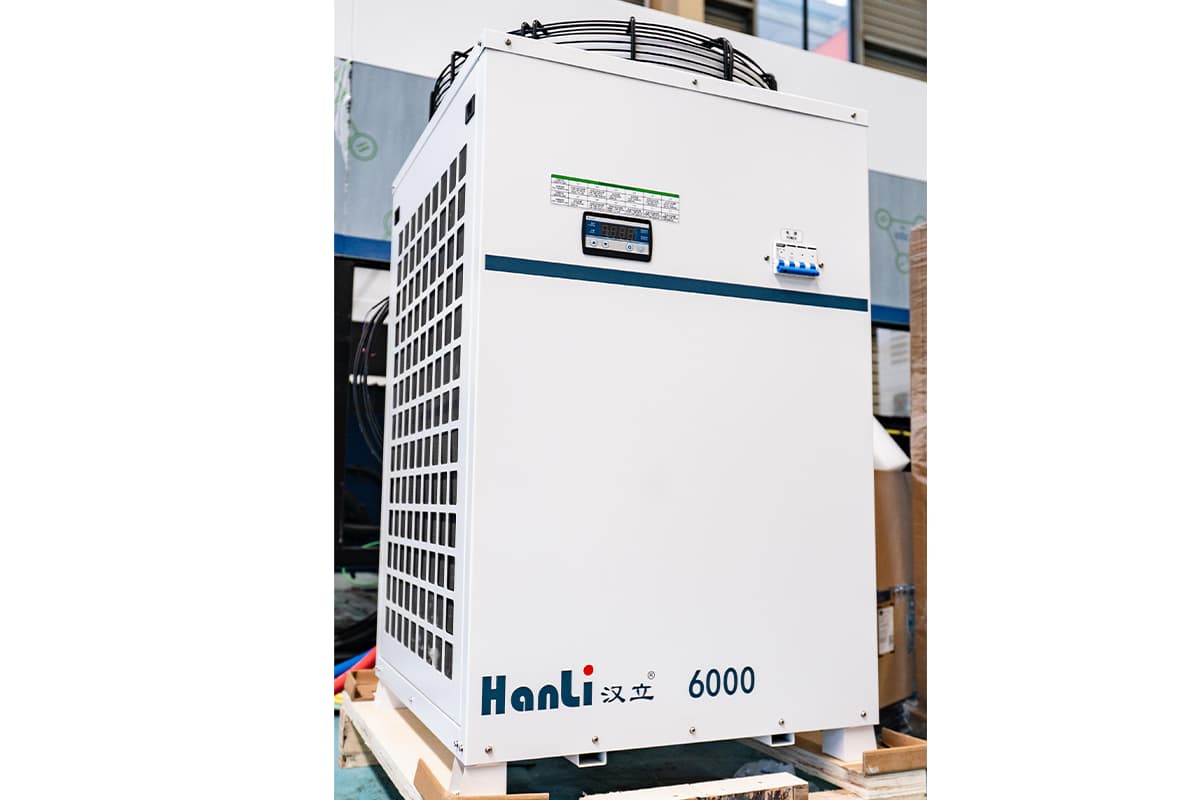

Modern high-power fiber lasers often employ multi-stage cooling systems, integrating water-cooled chillers for the laser diodes and resonator, alongside forced-air cooling for beam delivery optics.

The cutting head itself may utilize a combination of water cooling for the focusing optics and assist gas for nozzle cooling and molten material ejection. Implementing closed-loop temperature control systems with real-time monitoring allows for dynamic adjustment of cooling parameters, optimizing energy efficiency while ensuring consistent cutting performance.

For particularly heat-sensitive materials or high-precision applications, advanced techniques such as cryogenic assist gas or pulsed cryogenic jet systems can be employed to further mitigate thermal effects and enhance cut quality.

VI. Alternatives and Considerations

Other Cutting Technologies

While laser cutting is widely used, other cutting technologies may better suit specific needs.

Waterjet cutting uses a high-pressure stream of water mixed with abrasives to cut through various materials, especially thick, reflective, or heat-sensitive ones. It avoids thermal distortion and can handle metals, stone, and ceramics.

Plasma cutting employs a high-velocity jet of ionized gas to melt and cut conductive metals. It is fast and efficient for cutting thick metals, often used in construction and metal fabrication, though it lacks the precision of laser cutting.

Choosing the Right Technology

Choosing the right cutting technology depends on material type and thickness, required precision, budget, and project needs. Laser cutting is ideal for high precision and fine details, while waterjet or plasma cutting is better for thicker or heat-sensitive materials.

Consider total costs, including setup, energy, maintenance, and operation, to make an informed decision that aligns with production goals and budget.

VII. Conclusion

In conclusion, while laser cutting machines have many advantages, they also have some limitations, such as not being suitable for cutting highly reflective materials, having thickness limitations, and producing relatively wide kerf widths. However, these limitations are acceptable when compared to the benefits they offer.

If you are interested in laser cutting machines or have any sheet metal processing requirements, please feel free to contact us at ADH Machine Tool. We are a professional sheet metal production manufacturer with over 20 years of experience in producing laser cutting machines.
